Overvoltage protection
Increases the immunity of the luminaire to electrical discharges up to 15 pulses at 10 kV

Extension arms
ISKRA LED has a dedicated extensionarms group, designed by the Italian design office

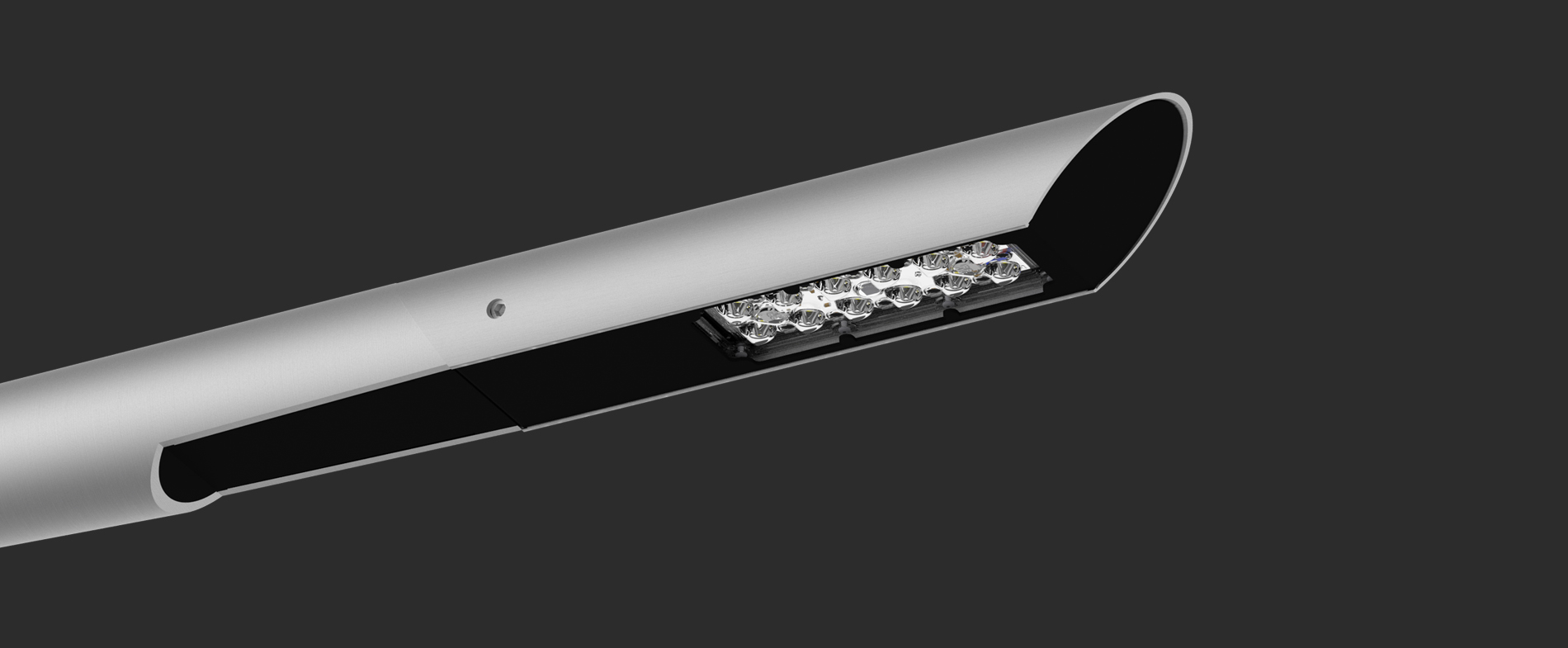

Replaceable LED module
Waterproof LED module. Equipped with 12 LEDs, available in 2 optical circuits

LEDs
They achieve light efficiency up to 121lm/W for the luminaire

Driver
Constant current, high power, with interface 1-10V (OPTION)

Anodized aluminium body
Inox / black color with anticorrosive
and decorative propertiesh

ParaméterÉrték
Assembly on extension arms with ø60 x 90 mm ending
Ingress protection IP 66
Material anodised aluminium alloy
Colour inox / black
Optical system PMMA optics
Number of LEDs 12 for 36W
Expected useful lifetime L90F10 – 50 000 h, L80F20 – 100 000 h
CRI >70 for 5000K, 4000K; >80 for 3500K
Corrective factor S/P 1,8 for 5000K; 1,45 for 3500K; 1,55 for 4000K
Input voltage frequency 50 / 60Hz
Power factor ≥0.95
Inrush current 50A / 210µs for 36W

CsatolmányMéret
PDF ikon iskra-led-p.pdf360.11 KB
Engedmény mértéke: 0%
Nettó ár: 0 HUF
Code Name LED power Luminaire Power
consumption
Colour
temperature
(CCT)
Luminaire
luminous flux
Luminous
efficacy
Net weight

2132032/3/...1) ISKRA LED P 36 36W 39W 3500K 4300lm 110lm/W 2,2kg
2132032/4/...1) ISKRA LED P 36 36W 39W 4000K 4600lm 118lm/W 2,2kg
2132032/6/...1) ISKRA LED P 36 36W 39W 5000K 4800lm 123lm/W 2,2kg
