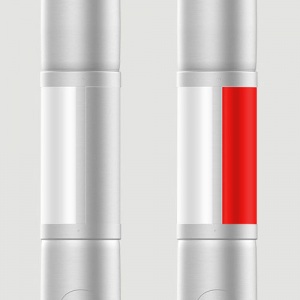

LED light source
Installed in half-ring shapes high-performance LED modules with 3500 K warm white and neutral white – 5000 K and in an alternative range of colours (blue, red, green)

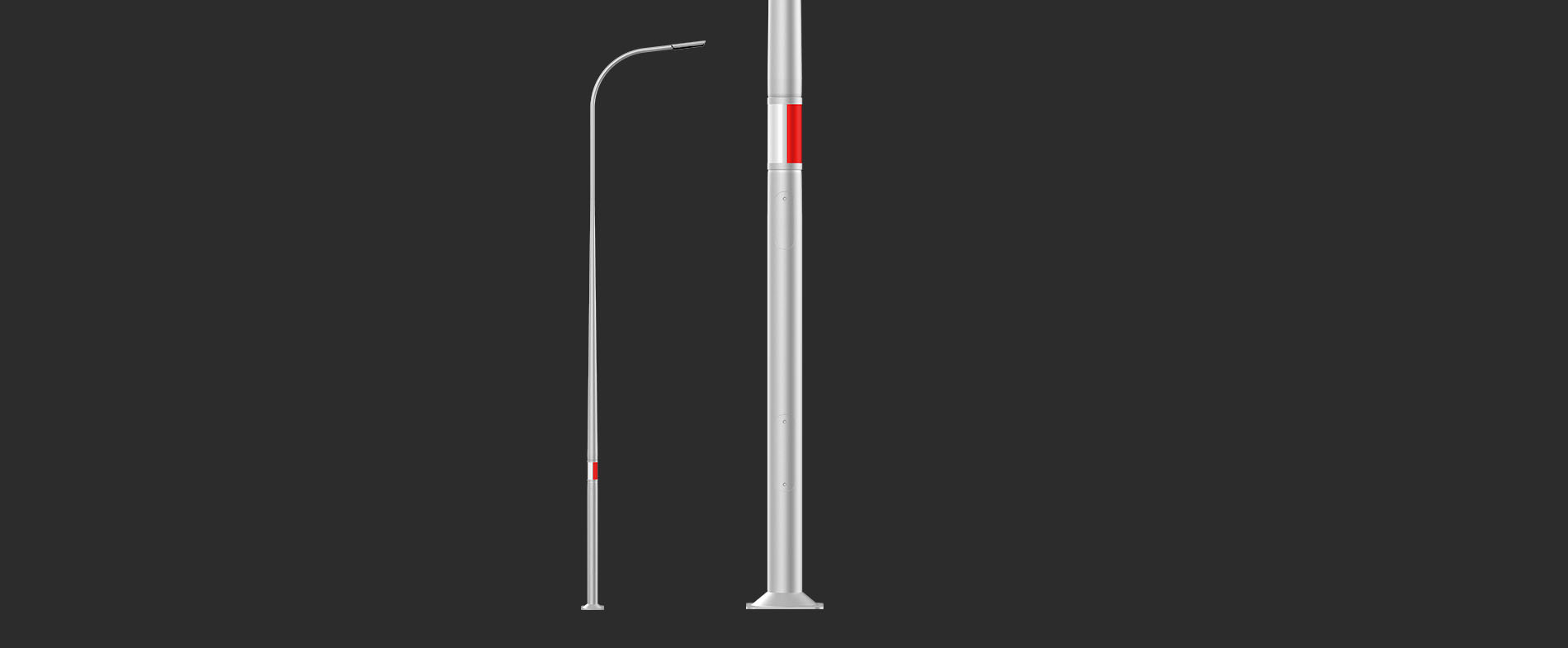

Smooth design
Built in the contour of the columns provides aesthetic design and solid construction
Driver Philips Xitanium
Constant current, high-performance driver with 7 programmable functions according to customer requirements
Programmable time profiles
The driver function with maximum 5 power levels in the range from 10 to 100% rated power in the selected luminaire operating time
Illumination without glare
Large edge-lit surface area ensures low glare, it is clearly visible from the distance for drivers as well as pedestrians
| Paraméter | Érték |
|---|---|
| Ingress protection | IP 66 for the optical part and the driver |
| Material | anodised aluminium profiles |
| Expected useful lifetime | L90F10 – 50 000 h, L80F20 – 100 000 h |
| CRI | >80 for 3500K; >70 for 5000K |
| Corrective factor S/P | 1,45 for 3500K; 1,8 for 5000K |
| Input voltage frequency | 50 - 60Hz |
| Power factor | ≥0.95 |
| Inrush current | 22A / 290µs |
| Csatolmány | Méret |
|---|---|
 edge-led.pdf | 397.66 KB |
| Code | Symbol | Height [H] | LED power | Luminaire Power consumption | Colour temperature (CCT) | Luminaire luminous flux | Luminous efficacy | Luminaire net weight |
| 4273027/3/...1) | SAL 9 WŁN 1/1,5/1,7/5 EDGE-1 | 9m | 10W | 14W | 3500K | 1150lm | 82lm/W | 45,3kg |
| 4273027/6/...1) | SAL 9 WŁN 1/1,5/1,7/5 EDGE-1 | 9m | 10W | 14W | 5000K | 1150lm | 82lm/W | 45,3kg |
| 4273127/3/...1) | SAL 10 WŁN 1/1,5/2,7/5 EDGE-1 | 10m | 10W | 14W | 3500K | 1150lm | 82lm/W | 47,4kg |
| 4273127/6/...1) | SAL 10 WŁN 1/1,5/2,7/5 EDGE-1 | 10m | 10W | 14W | 5000K | 1150lm | 82lm/W | 47,4kg |
| 4273227/3/...1) | SAL 11 WŁN 1/1,5/3,7/5 EDGE-1 | 11m | 10W | 14W | 3500K | 1150lm | 82lm/W | 49,5kg |
| 4273227/6/...1) | SAL 11 WŁN 1/1,5/3,7/5 EDGE-1 | 11m | 10W | 14W | 5000K | 1150lm | 82lm/W | 49,5kg |
| 4273029/3/...1) | SAL 9 WŁN 1/1,5/1,7/5 EDGE-2 | 9m | 20W | 26W | 3500K | 2350lm | 90lm/W | 45,3kg |
| 4273029/6/...1) | SAL 9 WŁN 1/1,5/1,7/5 EDGE-2 | 9m | 20W | 26W | 5000K | 2350lm | 90lm/W | 45,3kg |
| 4273129/3/...1) | SAL 10 WŁN 1/1,5/2,7/5 EDGE-2 | 10m | 20W | 26W | 3500K | 2350lm | 90lm/W | 47,4kg |
| 4273129/6/...1) | SAL 10 WŁN 1/1,5/2,7/5 EDGE-2 | 10m | 20W | 26W | 5000K | 2350lm | 90lm/W | 47,4kg |
| 4273229/3/...1) | SAL 11 WŁN 1/1,5/3,7/5 EDGE-2 | 11m | 20W | 26W | 3500K | 2350lm | 90lm/W | 49,5kg |
| 4273229/6/...1) | SAL 11 WŁN 1/1,5/3,7/5 EDGE-2 | 11m | 20W | 26W | 5000K | 2350lm | 90lm/W | 49,5kg |
