Overvoltage protection
Increases the immunity of the luminaire to electrical discharges up to 15 pulses at 10 kV
Extension arms
ISKRA LED has a dedicated extensionarms group, designed by the Italian design office

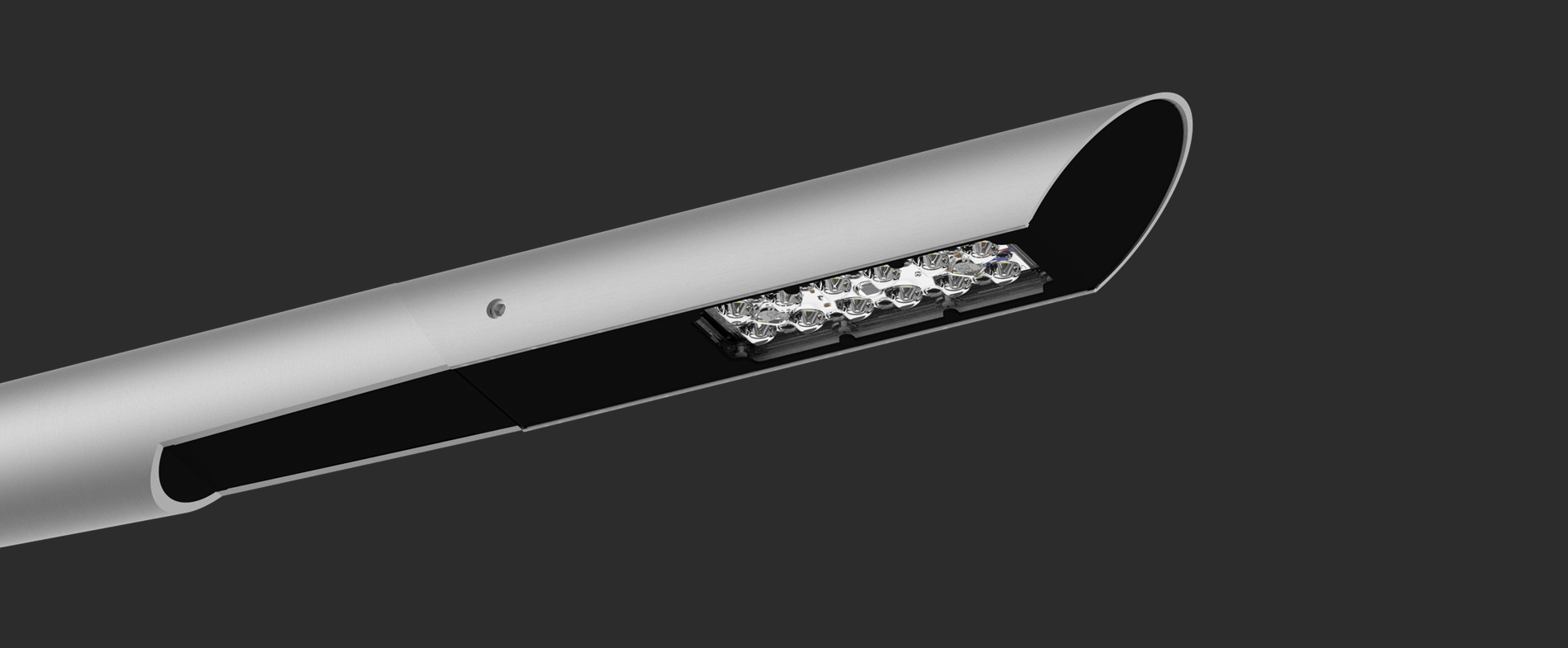

Replaceable LED module
Waterproof LED module. Equipped with 12 LEDs, available in 2 optical circuits
LEDs
They achieve light efficiency up to 123lm/W for the luminaire
Driver Philips Xitanium
High-performance and constant current power supply with 7 programmable functions according to customer requirements
Anodized aluminium body
Inox / black color with anticorrosive
and decorative propertiesh
| Paraméter | Érték |
|---|---|
| Application | pedestrian crossings |
| Assembly | on extension arms with ø60 x 90 mm ending |
| Ingress protection | IP 66 |
| Material | anodised aluminium alloy |
| Colour | inox / black |
| Optical system | PMMA optics |
| Number of LEDs | 12 for 36W |
| Expected useful lifetime | L90F10 – 50 000 h, L80F20 – 100 000 h |
| CRI | >70 for 5000K, 4000K; >80 for 3500K |
| Corrective factor S/P | 1,8 for 5000K; 1,45 for 3500K; 1,55 for 4000K |
| Input voltage frequency | 50 / 60Hz |
| Power factor | ≥0.95 |
| Inrush current | 22A / 290µs for 36W |
| Csatolmány | Méret |
|---|---|
 iskra-led-p-prog.pdf | 359.18 KB |
| Code | Name | LED power | Luminaire Power consumption |
Colour temperature (CCT) |
Luminaire luminous flux |
Luminous efficacy |
Net weight |
| 21320132/3/...1) | ISKRA LED P 36 PROG | 36W | 40W | 3500K | 4400lm | 110lm/W | 2,1kg |
| 21320132/4/...1) | ISKRA LED P 36 PROG | 36W | 40W | 4000K | 4700lm | 118lm/W | 2,1kg |
| 21320132/6/...1) | ISKRA LED P 36 PROG | 36W | 40W | 5000K | 4900lm | 123lm/W | 2,1kg |
