Application: parks, squares, pedestrian walkways, parkings, gardens
Anodising: 10 colours, each with possibility of chemical brightening
Finish: grinded, anodised aluminium, option of elastomer protection in the colour of the column up to the height of 50 mm (other height on customer’s request)
Packing: foil
Ingress protection: IP65
Voltage: 230V, AC
Insulation class: II
Material: cylindrical aluminium tube, diffuser frosted PMMA tube

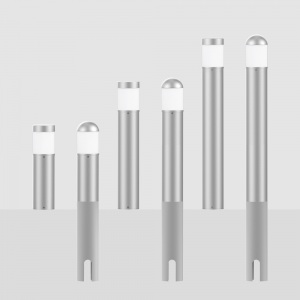

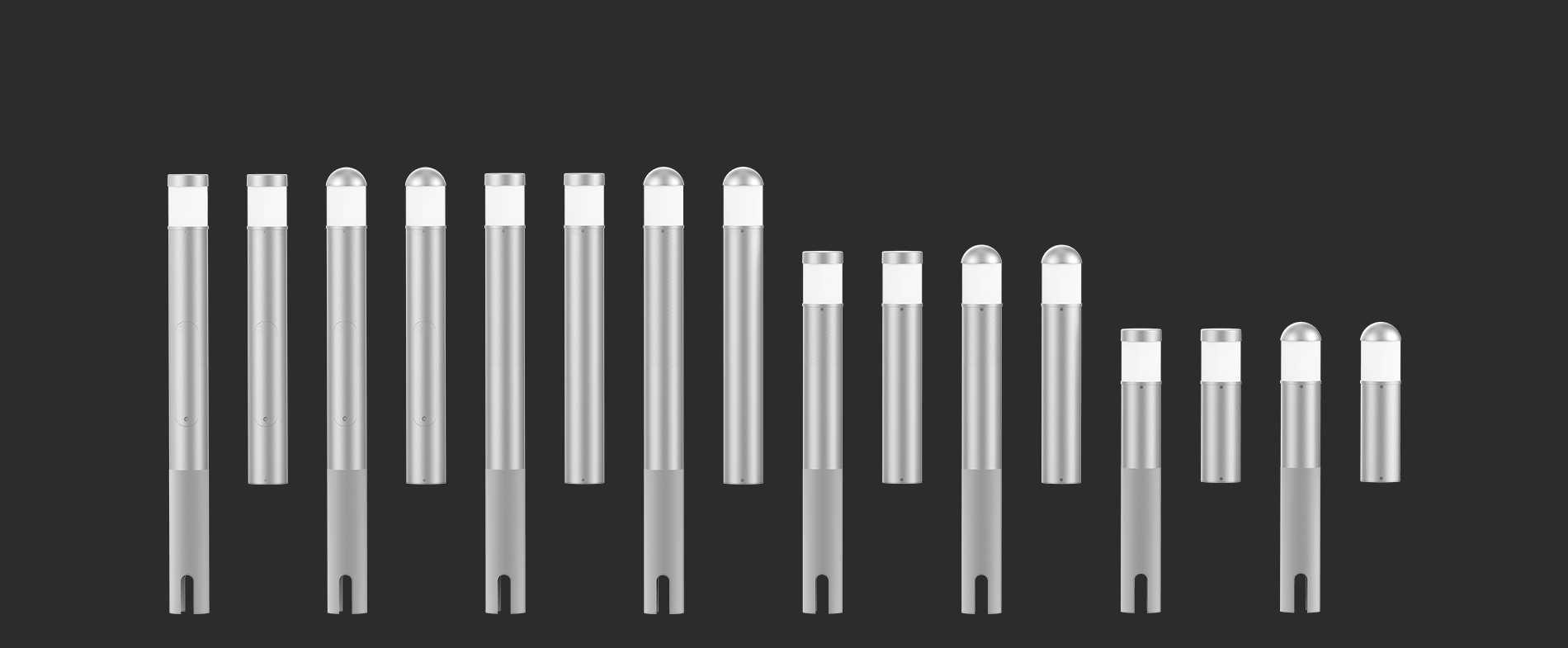

Types of bollards: on concrete footing and rooted (marked “dz” in the name) with round and flat cap (marked …/P in the product code)
Types of light sources:
S – sodium 50 W, 70 W
MH –metal halide 70 W, 100 W
E/Z – energy-efficient source E-27
Input voltage frequency: 50 Hz
Electrical equipment: mounted on universal gear frame, magnetic ballast with thermal protection for luminaires 50W-100W metal halide lamps MH 70W (EL) optionally available with electronic ballast

ParaméterÉrték
CsatolmányMéret
PDF ikon samr.pdf151.3 KB
Termékkategória: LED világító oszlopok
Engedmény mértéke: 0%
Nettó ár: 0 HUF
Ajánlatkérő kosárba
Code Symbol Cap Light source Height [H] Concrete footing / reinforcement basket Unit volume Net weight
450001/C... SAMR 600 S-50W

Round

 S-50W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,45kg
450002/C... SAMR 600 S-70W

Round

 S-70 W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,55kg
450003/C... SAMR 600 MH-70W

Round

 MH-70 W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,65kg
450003E/C... SAMR 600 MH-70W Electronic

Round

 MH-70 W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 3,45kg
450004/C... SAMR 600 MH-100W

Round

 MH-100 W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,75kg
450006/C... SAMR 600 Świetlówka

Round

 Świetlówka 23W 645mm B-0, B-0A / Z-0, Z-0A 0,015m3 3,25kg
450001/C.../P SAMR 600 S-50W

Flat

 S-50W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,45kg
450002/C.../P SAMR 600 S-70W

Flat

 S-70 W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,55kg
450003/C.../P SAMR 600 MH-70W

Flat

 MH-70 W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,65kg
450003E/C.../P SAMR 600 MH-70W Electronic

Flat

 MH-70 W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 3,45kg
450004/C.../P SAMR 600 MH-100W

Flat

 MH-100 W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 4,75kg
450006/C.../P SAMR 600 Świetlówka

Flat

 Świetlówka 23W 615mm B-0, B-0A / Z-0, Z-0A 0,015m3 3,25kg
450060/C... SAMR 600 dz S-50W

Round

 S-50W 645mm — 0,028m3 5,35kg
450061/C... SAMR 600 dz S-70W

Round

 S-70 W 645mm — 0,028m3 5,65kg
450062/C... SAMR 600 dz MH-70W

Round

 MH-70 W 645mm — 0,028m3 5,65kg
450062E/C... SAMR 600 dz MH-70W Electronic

Round

 MH-70 W 645mm — 0,028m3 4,45kg
450063/C... SAMR 600 dz MH-100W

Round

 MH-100 W 645mm — 0,028m3 5,85kg
450066/C... SAMR 600 dz Świetlówka

Round

 Świetlówka 23W 645mm — 0,028m3 4,25kg
450060/C.../P SAMR 600 dz S-50W

Flat

 S-50W 615mm — 0,028m3 5,35kg
450061/C.../P SAMR 600 dz S-70W

Flat

 S-70 W 615mm — 0,028m3 5,65kg
450062/C.../P SAMR 600 dz MH-70W

Flat

 MH-70 W 615mm — 0,028m3 5,65kg
450062E/C.../P SAMR 600 dz MH-70W Electronic

Flat

 MH-70 W 615mm — 0,028m3 4,45kg
450063/C.../P SAMR 600 dz MH-100W

Flat

 MH-100 W 615mm — 0,028m3 5,85kg
450066/C.../P SAMR 600 dz Świetlówka

Flat

 Świetlówka 23W 615mm — 0,028m3 4,25kg
450008/C... SAMR 900 S-50W

Round

 S-50W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,35kg
450009/C... SAMR 900 S-70W

Round

 S-70 W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,55kg
450010/C... SAMR 900 MH-70W

Round

 MH-70 W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,65kg
450010E/C... SAMR 900 MH-70W Electronic

Round

 MH-70 W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 4,45kg
450011/C... SAMR 900 MH-100W

Round

 MH-100 W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,75kg
450014/C... SAMR 900 Świetlówka

Round

 Świetlówka 23W 945mm B-0, B-0A / Z-0, Z-0A 0,023m3 4,45kg
450008/C.../P SAMR 900 S-50W

Flat

 S-50W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,35kg
450009/C.../P SAMR 900 S-70W

Flat

 S-70 W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,55kg
450010/C.../P SAMR 900 MH-70W

Flat

 MH-70 W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,65kg
450010E/C.../P SAMR 900 MH-70W Electronic

Flat

 MH-70 W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 4,45kg
450011/C.../P SAMR 900 MH-100W

Flat

 MH-100 W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 5,75kg
450014/C.../P SAMR 900 Świetlówka

Flat

 Świetlówka 23W 915mm B-0, B-0A / Z-0, Z-0A 0,023m3 4,45kg
450067/C... SAMR 900 dz S-50W

Round

 S-50W 945mm — 0,036m3 6,55kg
450068/C... SAMR 900 dz S-70W

Round

 S-70 W 945mm — 0,036m3 6,75kg
450069/C... SAMR 900 dz MH-70W

Round

 MH-70 W 945mm — 0,036m3 6,75kg
450069E/C... SAMR 900 dz MH-70W Electronic

Round

 MH-70 W 945mm — 0,036m3 5,55kg
450070/C... SAMR 900 dz MH-100W

Round

 MH-100 W 945mm — 0,036m3 6,95kg
450073/C... SAMR 900 dz Świetlówka

Round

 Świetlówka 23W 945mm — 0,036m3 5,35kg
450067/C.../P SAMR 900 dz S-50W

Flat

 S-50W 915mm — 0,036m3 6,55kg
450068/C.../P SAMR 900 dz S-70W

Flat

 S-70 W 915mm — 0,036m3 6,75kg
450069/C.../P SAMR 900 dz MH-70W

Flat

 MH-70 W 915mm — 0,036m3 6,75kg
450069E/C.../P SAMR 900 dz MH-70W Electronic

Flat

 MH-70 W 915mm — 0,036m3 6,75kg
450070/C.../P SAMR 900 dz MH-100W

Flat

 MH-100 W 915mm — 0,036m3 6,95kg
450073/C.../P SAMR 900 dz Świetlówka

Flat

 Świetlówka 23W 915mm — 0,036m3 5,35kg
450015/C... SAMR 1200 S-50W

Round

 S-50W 1245mm B-0A / Z-0A 0,031m3 6,25kg
450016/C... SAMR 1200 S-70W

Round

 S-70 W 1245mm B-0A / Z-0A 0,031m3 6,55kg
450017/C... SAMR 1200 MH-70W

Round

 MH-70 W 1245mm B-0A / Z-0A 0,031m3 6,55kg
450017E/C... SAMR 1200 MH-70W Electronic

Round

 MH-70 W 1245mm B-0A / Z-0A 0,031m3 5,35kg
450018/C... SAMR 1200 MH-100W

Round

 MH-100 W 1245mm B-0A / Z-0A 0,031m3 6,75kg
450021/C... SAMR 1200 Świetlówka

Round

 Świetlówka 23W 1245mm B-0A / Z-0A 0,031m3 5,15kg
450015/C.../P SAMR 1200 S-50W

Flat

 S-50W 1215mm B-0A / Z-0A 0,031m3 6,25kg
450016/C.../P SAMR 1200 S-70W

Flat

 S-70 W 1215mm B-0A / Z-0A 0,031m3 6,55kg
450017/C.../P SAMR 1200 MH-70W

Flat

 MH-70 W 1215mm B-0A / Z-0A 0,031m3 6,55kg
450017E/C.../P SAMR 1200 MH-70W Electronic

Flat

 MH-70 W 1215mm B-0A / Z-0A 0,031m3 5,35kg
450018/C.../P SAMR 1200 MH-100W

Flat

 MH-100 W 1215mm B-0A / Z-0A 0,031m3 6,75kg
450021/C.../P SAMR 1200 Świetlówka

Flat

 Świetlówka 23W 1215mm B-0A / Z-0A 0,031m3 5,15kg
450074/C... SAMR 1200 dz S-50W

Round

 S-50W 1245mm — 0,043m3 7,55kg
450075/C... SAMR 1200 dz S-70W

Round

 S-70 W 1245mm — 0,043m3 7,75kg
450076/C... SAMR 1200 dz MH-70W

Round

 MH-70 W 1245mm — 0,043m3 7,75kg
450076E/C... SAMR 1200 dz MH-70W Electronic

Round

 MH-70 W 1245mm — 0,043m3 6,65kg
450077/C... SAMR 1200 dz MH-100W

Round

 MH-100 W 1245mm — 0,043m3 7,95kg
450080/C... SAMR 1200 dz Świetlówka

Round

 Świetlówka 23W 1245mm — 0,043m3 6,45kg
450074/C.../P SAMR 1200 dz S-50W

Flat

 S-50W 1215mm — 0,043m3 7,55kg
450075/C.../P SAMR 1200 dz S-70W

Flat

 S-70 W 1215mm — 0,043m3 7,75kg
450076/C.../P SAMR 1200 dz MH-70W

Flat

 MH-70 W 1215mm — 0,043m3 7,75kg
450076E/C.../P SAMR 1200 dz MH-70W Electronic

Flat

 MH-70 W 1215mm — 0,043m3 6,65kg
450077/C.../P SAMR 1200 dz MH-100W

Flat

 MH-100 W 1215mm — 0,043m3 7,95kg
450080/C.../P SAMR 1200 dz Świetlówka

Flat

 Świetlówka 23W 1215mm — 0,043m3 6,45kg
450022/C... SAMR 1200 W S-50W

Round

 S-50W 1245mm B-0A / Z-0A 0,031m3 6,45kg
450023/C... SAMR 1200 W S-70W

Round

 S-70 W 1245mm B-0A / Z-0A 0,031m3 6,75kg
450024/C... SAMR 1200 W MH-70W

Round

 MH-70 W 1245mm B-0A / Z-0A 0,031m3 6,75kg
450024E/C... SAMR 1200 W MH-70W Electronic

Round

 MH-70 W 1245mm B-0A / Z-0A 0,031m3 5,55kg
450025/C... SAMR 1200 W MH-100W

Round

 MH-100 W 1245mm B-0A / Z-0A 0,031m3 6,95kg
450028/C... SAMR 1200 W Świetlówka

Round

 Świetlówka 23W 1245mm B-0A / Z-0A 0,031m3 5,35kg
450022/C.../P SAMR 1200 W S-50W

Flat

 S-50W 1215mm B-0A / Z-0A 0,031m3 6,45kg
450023/C.../P SAMR 1200 W S-70W

Flat

 S-70 W 1215mm B-0A / Z-0A 0,031m3 6,75kg
450024/C.../P SAMR 1200 W MH-70W

Flat

 MH-70 W 1215mm B-0A / Z-0A 0,031m3 6,75kg
450024E/C.../P SAMR 1200 W MH-70W Electronic

Flat

 MH-70 W 1215mm B-0A / Z-0A 0,031m3 5,55kg
450025/C.../P SAMR 1200 W MH-100W

Flat

 MH-100 W 1215mm B-0A / Z-0A 0,031m3 6,95kg
450028/C.../P SAMR 1200 W Świetlówka

Flat

 Świetlówka 23W 1215mm B-0A / Z-0A 0,031m3 5,35kg
450081/C... SAMR 1200 W dz S-50W

Round

 S-50W 1245mm — 0,043m3 7,85kg
450082/C... SAMR 1200 W dz S-70W

Round

 S-70 W 1245mm — 0,043m3 8,15kg
450083/C... SAM 1200 W dz MH-70W

Round

 MH-70 W 1245mm — 0,043m3 8,15kg
450083E/C... SAM 1200 W dz MH-70W Electronic

Round

 MH-70 W 1245mm — 0,043m3 6,95kg
450084/C... SAMR 1200 W dz MH-100W

Round

 MH-100 W 1245mm — 0,043m3 8,35kg
450087/C... SAMR 1200 W dz Świetlówka

Round

 Świetlówka 23W 1245mm — 0,043m3 6,75kg
450081/C.../P SAMR 1200 W dz S-50W

Flat

 S-50W 1215mm — 0,043m3 7,85kg
450082/C.../P SAMR 1200 W dz S-70W

Flat

 S-70 W 1215mm — 0,043m3 8,15kg
450083/C.../P SAMR 1200 W dz MH-70W

Flat

 MH-70 W 1215mm — 0,043m3 8,15kg
450083E/C.../P SAMR 1200 W dz MH-70W Electronic

Flat

 MH-70 W 1215mm — 0,043m3 6,95kg
450084/C.../P SAMR 1200 W dz MH-100W

Flat

 MH-100 W 1215mm — 0,043m3 8,35kg
450087/C.../P SAMR 1200 W dz Świetlówka

Flat

 Świetlówka 23W 1215mm — 0,043m3 6,75kg
