Ending
Mounting diameter of
luminaire ø60x50-200 mm
The angle of the arm: 5°
Assembling head
High torque strength 640 Nm,
4 mounting screws make it very easy to set the extension arm parallel to the pole. Assembly on pole with ø60mm end
10 anodising colours
Aluminium extension arm are anodised. Anodising consists in creating the oxide layer on metal surface by electrochemical method. Anodisation not only protects the columns against external factors but also gives possibility to dye aluminum in 10 different colors, each with silk finis version.
| Paraméter | Érték |
|---|---|
| Anodising | 10 colours, each with possibility of chemical brightening |
| Finish | grinded, anodised aluminium |
| Packing | sleeve material |
| Csatolmány | Méret |
|---|---|
 wrp-1.pdf | 105.26 KB |
 47219112-wrp-1-1-0-1-2-5.dwg | 239.74 KB |

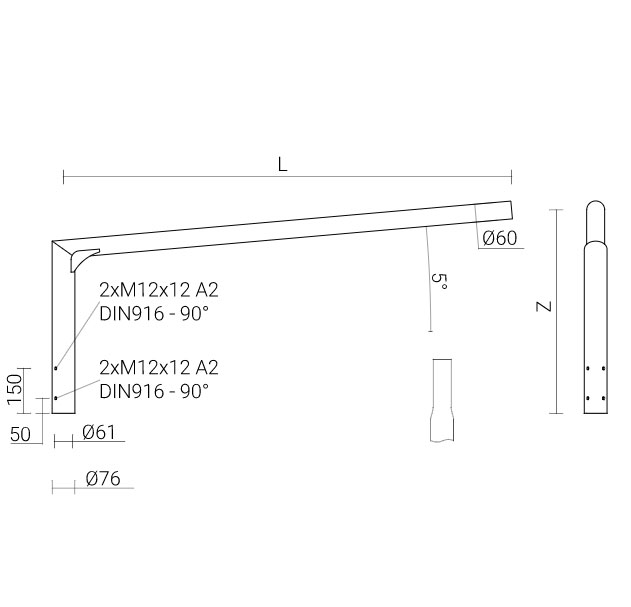

| Code | Symbol | Outreach lengh - L | Height of extension arm - Z | Extension arm effective projected area | Approximate unit volume | Net weight |
| 47219111 | WRP 1/1,0/0,7/5 | 1m | 0,68m | 0,106m2 | 0,05m3 | 3,7kg |
| 47219112 | WRP 1/1,0/1,2/5 | 1m | 1,18m | 0,144m2 | 0,09m3 | 5,3kg |
| 47219121 | WRP 1/1,5/0,7/5 | 1,5m | 0,68m | 0,133m2 | 0,07m3 | 4,4kg |
| 47219122 | WRP 1/1,5/1,2/5 | 1,5m | 1,18m | 0,17m2 | 0,12m3 | 6kg |
